When sourcing a 5 ton four-wheel counterbalance electric forklift, lift height and mast configuration are two critical specs that directly impact operational efficiency and safety. Wrong choices lead to wasted cost, limited capability or avoidable safety risks. Below we break down key selection checks aligned with common operational needs.

Key Lift Height Selection Factors

Your required lift height depends entirely on your daily work tasks and facility layout. Start by measuring the maximum height you need to reach when placing the highest load. Add extra clearance between the top of your load and any overhead structure, such as ceiling beams, sprinkler systems or top rack rails. This extra space prevents accidental collisions during operation.

Always account for load center impact on maximum capacity. The 5 ton rating applies to standard load center distances, most commonly 500mm or 600mm. As lift height increases, the truck center of gravity shifts upward and forward. This shift reduces the maximum safe load the truck can handle at full height. If you regularly carry loads longer than the standard load center, you need adjust your lift height expectation or confirm a revised capacity rating from the manufacturer.

Workspace clearance also affects your choice. Taller masts increase the overall length and turning radius of the truck. You need measure the minimum aisle width your facility can accommodate before locking in a lift height spec. If your site has sloped loading areas or travel routes, taller masts raise the center of gravity and reduce lateral stability. You may need to opt for a shorter mast or additional stability upgrades in this scenario.

Common Mast Configuration Types and Application Scenarios

Standard Triplex Masts

Standard triplex masts include full free lift capability, work well in indoor warehouse storage with double or triple tier racking. Most 5 ton models offer lift heights ranging from 3 meters to 6 meters with this configuration, fitting most general loading, unloading and storage operations. This configuration balances cost, performance and versatility most industrial work sites need.

Full Free Lift Masts

Full free lift masts let forks rise completely without extending outer mast sections. This design suits work inside shipping containers or enclosed trailers, where overhead clearance remains limited. Operators can load and unload pallets without hitting the container roof, making this configuration perfect cross docking or port related operations.

High Lift Masts

High lift masts reach maximum heights beyond 6 meters, designed to support high density racking systems. They require more rigid structural framing to maintain load stability at full elevation, which adds slightly to overall truck weight and upfront cost. This configuration makes sense only when you need extra vertical storage space, otherwise it adds unnecessary expense.

When choosing between configurations, match the mast type to your most frequent operation. Oversizing adds unnecessary cost, while undersizing limits your ability to adapt to future operational changes.

Frequently Asked Questions

Does higher lift height reduce 5 ton forklift load capacity?

Yes. The 5 ton capacity rating applies to standard lift height and standard load center settings. As mast height increases, center of gravity shifts forward and upward, which lowers the maximum safe load the truck can carry. Always check manufacturer load capacity charts matching your chosen lift height before finalizing your order.

Can I modify mast configuration after truck delivery?

Changing mast configuration after delivery requires major structural modification, which is rarely cost effective or safe. This kind of modification also voids most manufacturer warranty terms. Confirm all lift height and mast requirements before placing your order.

What clearance do I need above my maximum load height?

Most facilities require 200 to 300 mm extra clearance between the top of your highest load and any overhead structure. This clearance creates buffer space to prevent collisions and accommodate small variations in mast movement during operation. Adjust this value upward if your operations include fast moving load placement.

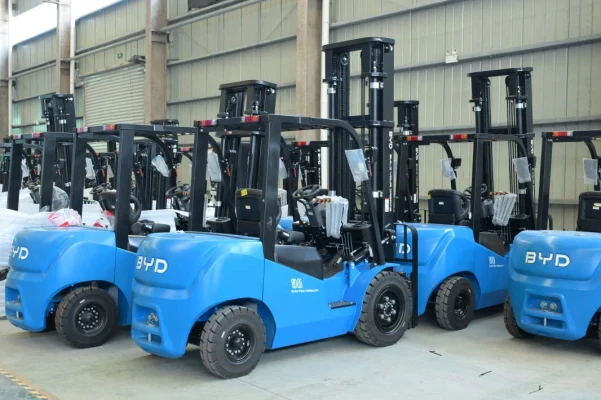

If you need help confirming the right lift height and mast configuration your 5 ton BYD four-wheel counterbalance electric forklift, share your workspace dimensions, load requirements and operational details with our team. We can help you identify the best matching setup your business needs.
