When specifying a four-wheel counterbalance electric forklift that works with accessory attachments, two critical factors directly impact safe operation and performance: attachment hydraulics and residual capacity. Misalignment between these factors leads to unsafe operating conditions, reduced truck lifespan, and inability handle required loads. This guide walks through core concepts, key impacts, and practical specification steps.

Residual Capacity: Core Definition Within Forklift Specification

Residual capacity is the maximum load a forklift can lift safely after accounting for additional weight from mounted attachments. Standard capacity ratings rely on a specific load center and no extra accessory weight. When you add any attachment, added weight shifts the truck’s center of gravity forward, reducing total safe lifting weight the truck can handle. Four-wheel counterbalance electric forklift designs balance load weight across the rear axle and chassis. Any extra forward weight from an attachment upsets this balance, so residual capacity becomes a critical safety and performance metric.

Attachment hydraulics also add their own weight to the front of the truck, beyond the attachment itself. Most hydraulic systems needed to power attachments sit mounted to the carriage or front frame, adding even more forward mass that impacts residual capacity. Many new buyers fail to account for this extra hydraulic weight, leading to incorrect capacity calculations.

How Attachment Hydraulics Affect Residual Capacity

Hydraulic System Weight Placement

All hydraulic components hoses, valves, actuator cylinders mount directly to the front end of the four-wheel counterbalance electric forklift. This added mass sits ahead of the front axle, the same location your working load occupies. Even lightweight hydraulic setups add enough mass to cut into total available lifting capacity. Heavier high-flow hydraulic systems, needed for power-intensive attachments like side shifters or rotators, add more forward mass and create larger capacity reductions.

Front Carriage Modification Impacts

Most attachments require modification to the standard front carriage to fit hydraulic lines and mounting brackets. These modifications add extra weight that shifts the combined center of gravity further forward. Larger carriages built to accommodate heavy attachments also add more forward mass, leading to greater residual capacity reductions.

Different attachments require different hydraulic flow rates, which correspond to different component sizes. Higher flow needs larger pumps, larger valves, and thicker hoses, all of which add more weight. Your residual capacity calculation must include every component connected to the attachment system, not just the attachment itself.

Key Steps To Specify Correct Residual Capacity

• Calculate total combined weight of your attachment plus all associated hydraulic components. Include mounting brackets, valves, lines, and any other front-end modifications.
• Measure the new combined center of gravity for the attachment and hydraulic assembly. This value sits further forward than a standard fork load, so you need adjust capacity calculations accordingly.
• Cross-reference the adjusted load requirements against the manufacturer’s published residual capacity charts matching your selected four-wheel counterbalance electric forklift model.
• Ensure your adjusted residual capacity exceeds your maximum working load weight to maintain safe operating margins.
• Confirm hydraulic power output matches your attachment’s needs without adding unnecessary extra weight. Oversized hydraulic systems add avoidable weight that further reduces residual capacity.

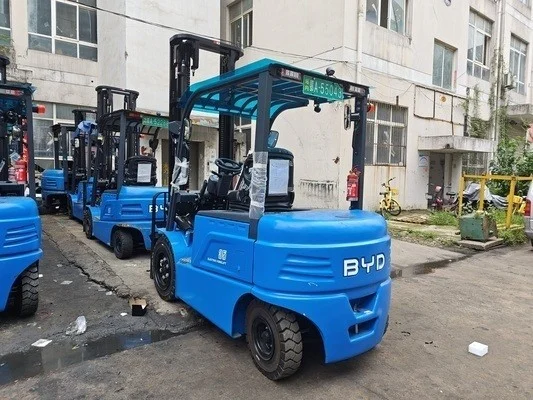

If you work with BYD four-wheel counterbalance electric forklift, you can share your attachment type, hydraulic needs, and maximum load requirements with our team to get accurate residual capacity calculations tailored to your operation.

Different four-wheel counterbalance electric forklift models have different chassis and counterweight configurations. Larger counterweights offset more front-end attachment mass, so they deliver higher residual capacity matching the same base truck rating. If your operation relies heavily on attachments, you can choose a slightly larger base truck or upgraded counterweight to maintain the lifting capacity you need.

Many buyers overlook hydraulic component weight when calculating required residual capacity. This common mistake leads to selecting a truck with insufficient safe lifting capacity, creating safety risks and reduced truck lifespan.

Common Misconceptions About Residual Capacity

One widespread misconception holds only attachment weight impacts residual capacity. In reality, hydraulic system weight and mounting hardware often add 20% or more additional front-end mass that many calculations ignore. Another common misconception claims all attachments reduce capacity equally. Different attachment and hydraulic combinations create different center of gravity shifts, so capacity reductions vary widely even across attachments with similar overall weight. Third, some operators assume base truck capacity covers all possible accessory loads. This incorrect assumption creates unsafe operating conditions, because base capacity ratings only apply when the truck uses standard forks with no extra attachments or hydraulics.

Even when your attachment stays mounted to the truck permanently, you must adjust capacity ratings to reflect the permanent added weight. Permanent mounting does not change the truck’s center of gravity or balance, so residual capacity limits still apply at all times.

Frequently Asked Questions

Does residual capacity change with lifting height?

Yes. As lifting height increases, the combined center of gravity shifts further forward, reducing residual capacity even more. You must check residual capacity ratings at your maximum required lifting height, not just at ground level.

Can I upgrade my truck’s counterweight to improve residual capacity?

Most four-wheel counterbalance electric forklift manufacturers offer upgraded counterweight options matching models built to handle frequent attachment use. You must confirm any counterweight upgrade aligns with the truck’s axle and chassis load ratings before installation.

Do all attachments need custom hydraulic systems?

No. Some lighter attachments use the truck’s existing standard hydraulic system, so they require fewer additional components and add less extra weight. Heavier or more complex attachments require dedicated hydraulic setups that add more front-end mass.

Where can I access official residual capacity ratings matching my truck configuration?

Official residual capacity charts come directly from the forklift manufacturer. You can access these charts through the manufacturer’s technical documentation or contact your supplier to get tailored calculations matching your specific configuration.
